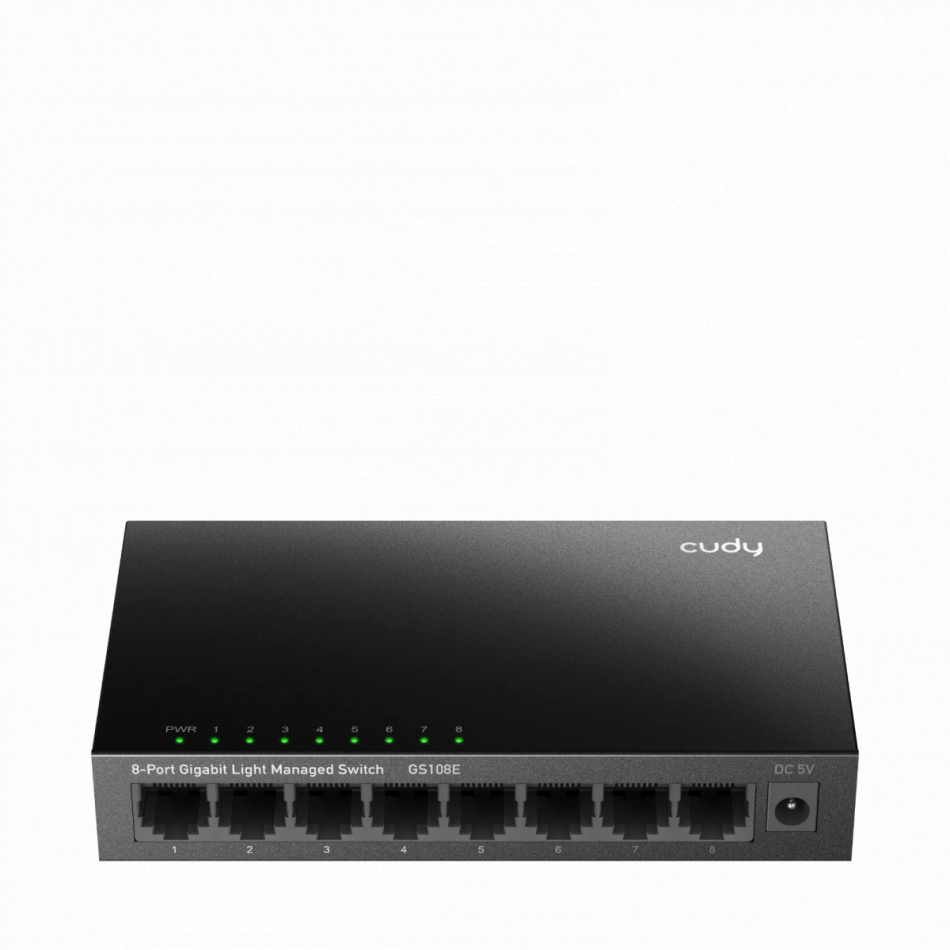

Cudy Switch Gigabit de 8 Puertos -hasta 1000Mbps - Plug and Play - Carcasa de Metal

    Fabricante:   CUDY    P/N:  GS108E    EAN:  6971690794026    Código:  72372
Producto nuevo a estrenar directo del fabricante
Stock: 10 unidades
28,63 €

IVA incluido

Cantidad

Especificaciones técnicas

  • 8 puertos Gigabit Ethernet
  • Administración web, SNMP
  • VLAN (802.1Q/MTU/Voz/Basada en puerto)
  • QoS (802.1p/DSCP/basado en puerto)
  • Port Mirror, Static Aggregation, etc
  • STP/RSTP y prevención de bucles
  • Inspección de DHCP, Inspección de IGMP
  • EEE (Ahorro de energía 802.3az)
  • Escritorio, montaje en pared
138×78×25 mm (5,43×3,07×0,98)

Interfaces Gigabit RJ45 Ports 8
LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
Power Input DC Jack
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 6 or higher cable: 150 meters at Gigabit
MAC Address Table 8192
Max Switching Capacity 16 Gbps
Max Forwarding Rate 11.904 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power Basic Power Saving True
Power Methods DC
DC 5V⎓0.55A
Power Adapter Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A
Max Power Consumption 2.75W
Idle Power Consumption 2.2W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3az Power Saving
802.1 Protocols
  • 802.1d: STP
  • 802.1w: RSTP
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port per Port Trunk Groups 8
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • DHCP Snooping
  • STP/RSTP
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • Voice VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
System Control Methods
  • Config Web Page
  • SNMP V1/V2
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical Dimension 138×78×25 mm
5.43×3.07×0.98 inches
Product Weight 214.5 g (7.57 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount
Package Content
  • GS108E
  • Power Adapter
  • Installation Guide
Ordering Information Retail Package Dimension EU/US:
151×90.5×63 mm
5.94×3.56×2.48 inches
Retail Package Weight EU: 316.5 g (11.16 oz.)
Units per Carton EU/US: 40
Carton Net Weight EU: 14.5 kg (31.97 lbs)
Carton Gross Weight EU: 15.1 kg (33.29 lbs)
Carton Dimension EU/US: 48.5×32.5×27.8 cm
19.09×12.8×10.94 inches

Información adicional

SKU (Número de Referencia) 72372
EAN 6971690794026
